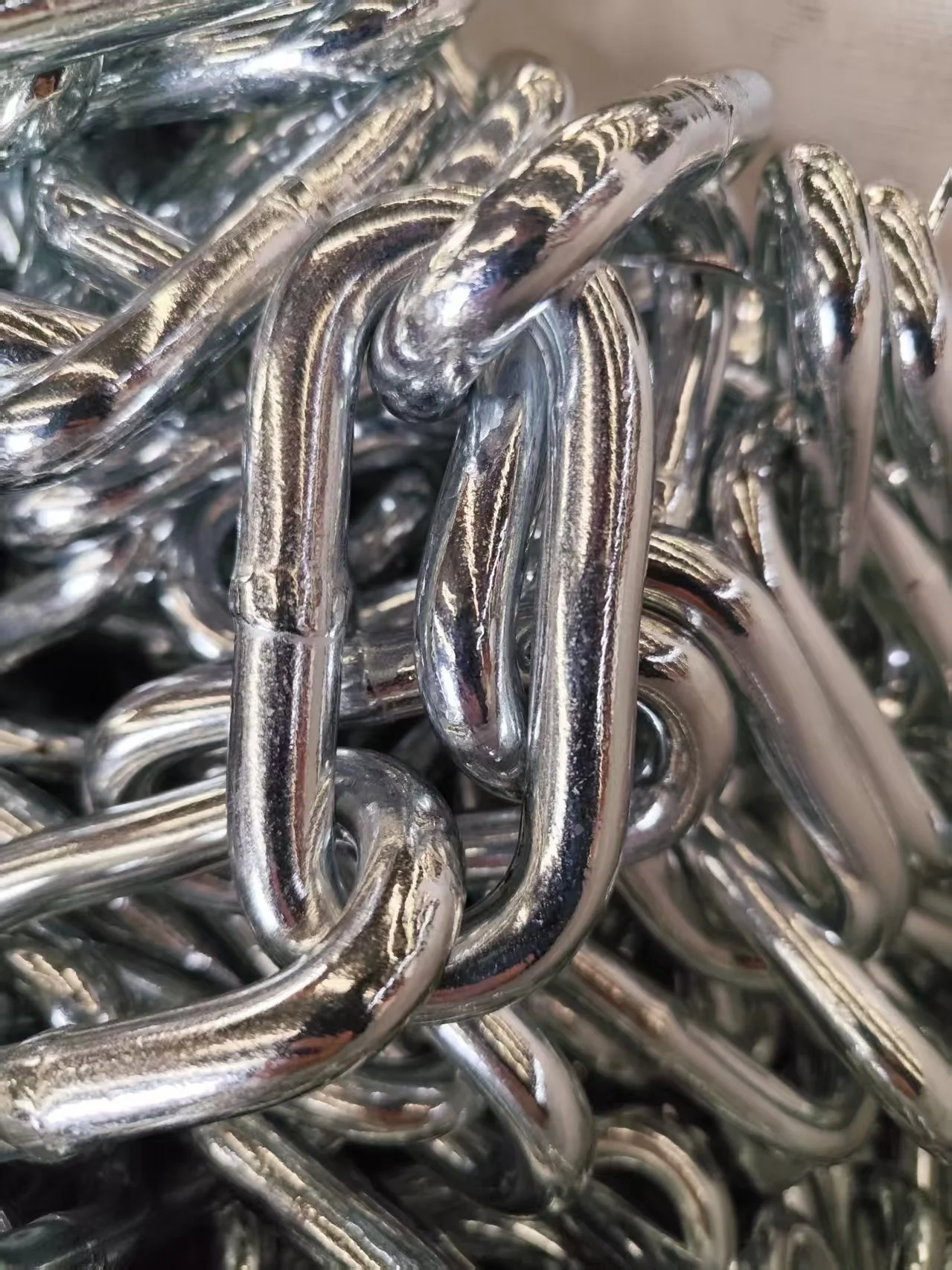

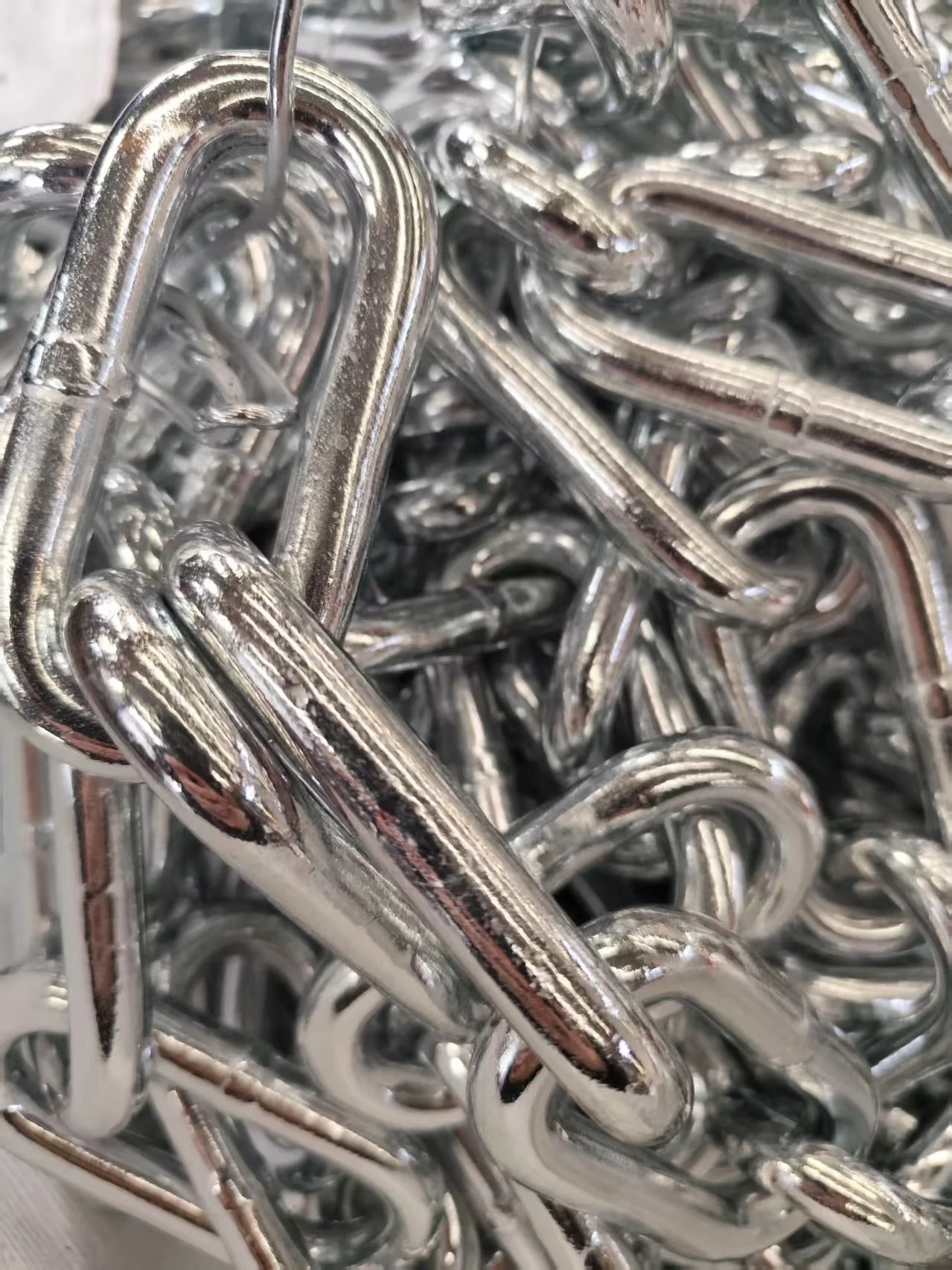

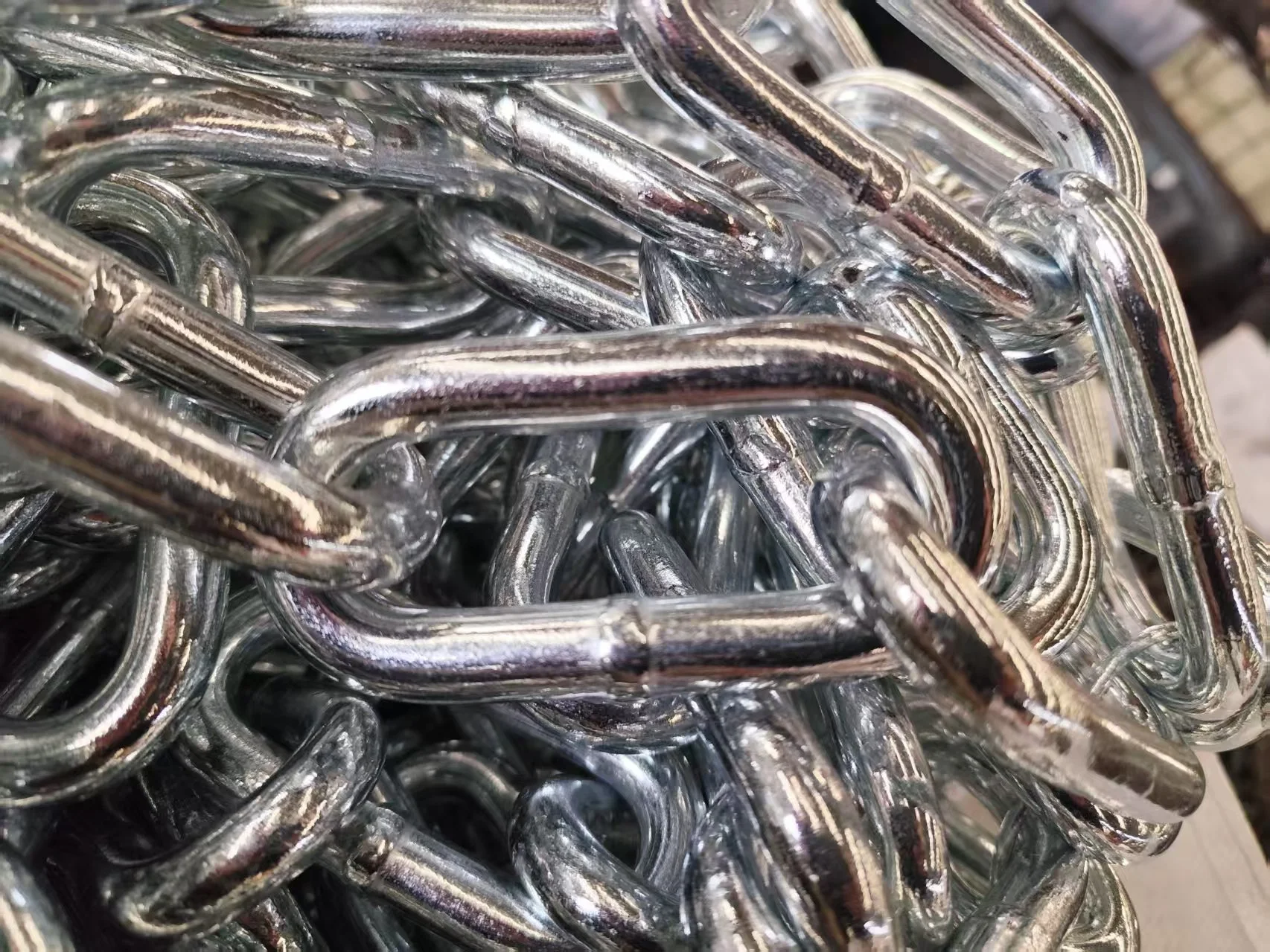

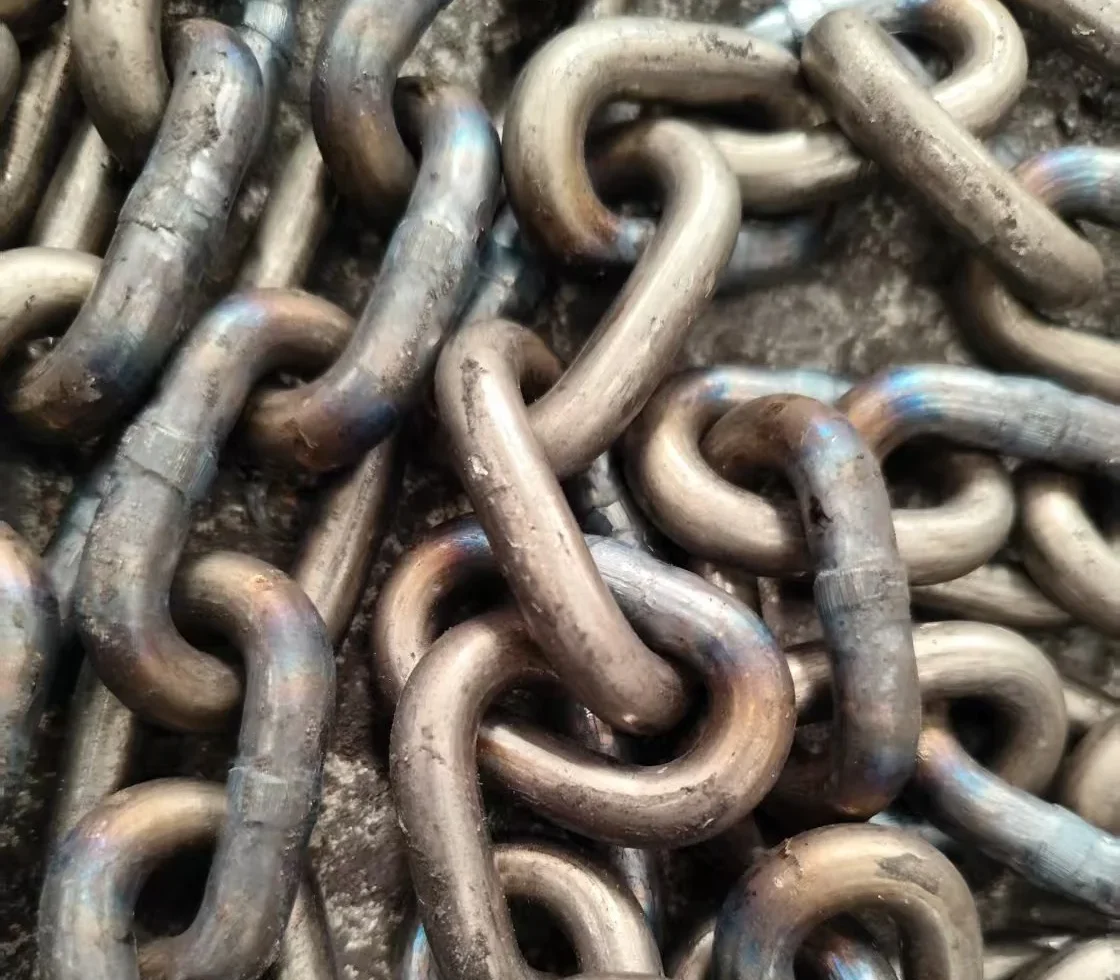

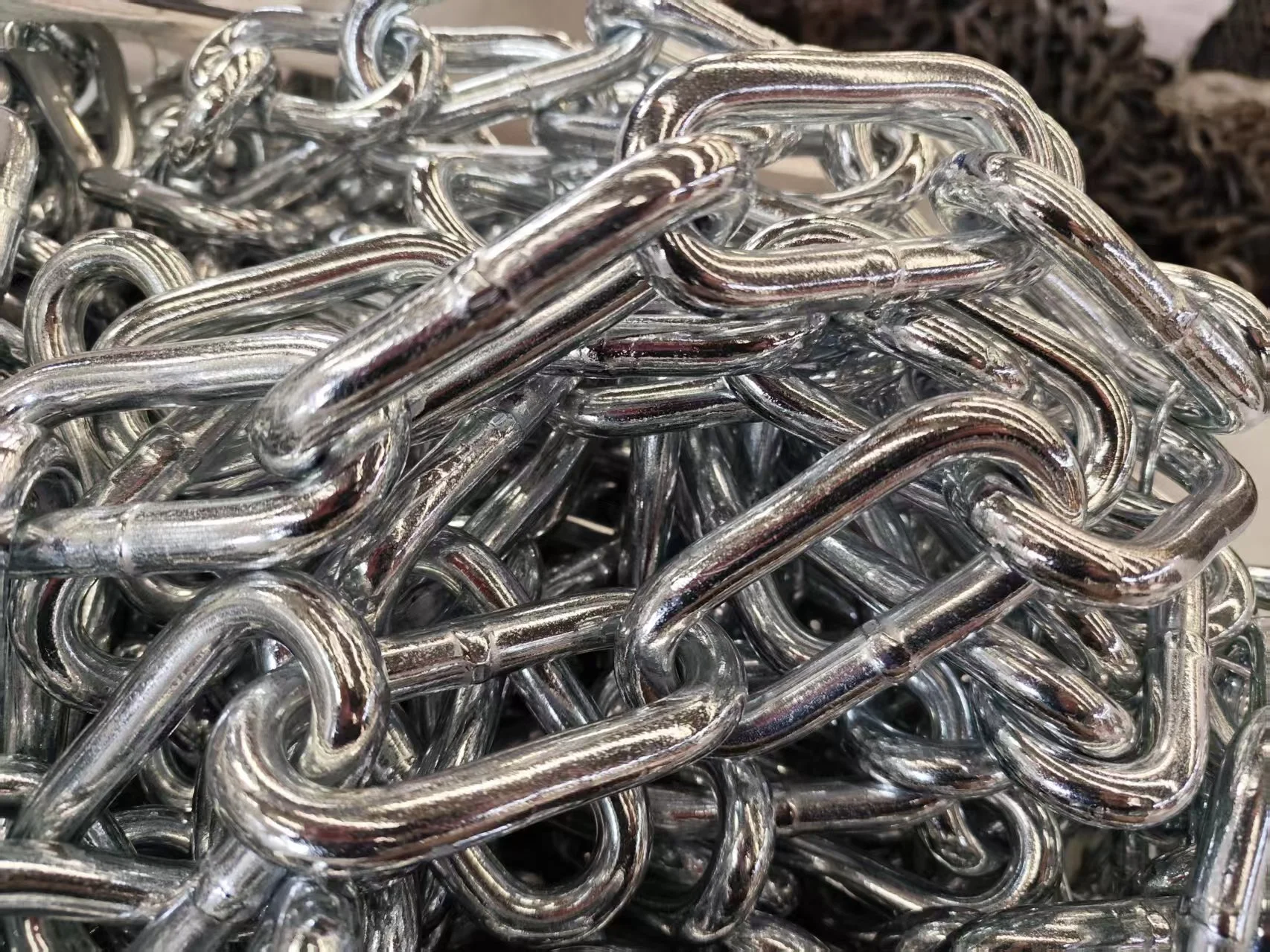

Australian Standard Long Link Chain is a sort of mild steel welded link chain manufactured to meet Australian Standard.
There are three types of the chain: short link, medium link and long link.
Australian Standard Long Link Chain is manufactured in strict accordance with Australian specifications, featuring high tensile strength and excellent durability. The long link design ensures smooth connection and flexible use, suitable for lifting, rigging, construction, and general industrial applications. Made of quality steel, it offers good wear and corrosion resistance, stable performance, and reliable safety for heavy-duty operations.
The chain is in a variety of protective finishes and packages.
Besides, we provide a wide range of material diameter, from 3mm to 10mm.
The chain material can be carbon steel or stainless steel AISI 304/316.
| Chain Size mm |
Working Load ton |
Link Dimension | Link Per M pc |
Length Per 100kg | |||
| Dia mm |
Inside Length mm |
Outside Width mm |
B.F M |
H.D.G M |
|||
| 3 | 0.05 | 3.15 | 22.1 | 15.7 | 45.3 | 555.0 | 526.0 |
| 4 | 0.09 | 4.00 | 25.4 | 18.6 | 39.3 | 345.0 | 323.0 |
| 5 | 0.19 | 5.00 | 29.3 | 21.8 | 34.1 | 217.0 | 206.0 |
| 6 | 0.32 | 6.30 | 34.5 | 26.1 | 29.0 | 135.0 | 128.0 |
| 8 | 0.53 | 8.00 | 41.2 | 31.9 | 24.3 | 82.2 | 78.1 |
| 10 | 0.83 | 10.00 | 49.0 | 38.7 | 20.4 | 52.8 | 50.2 |
