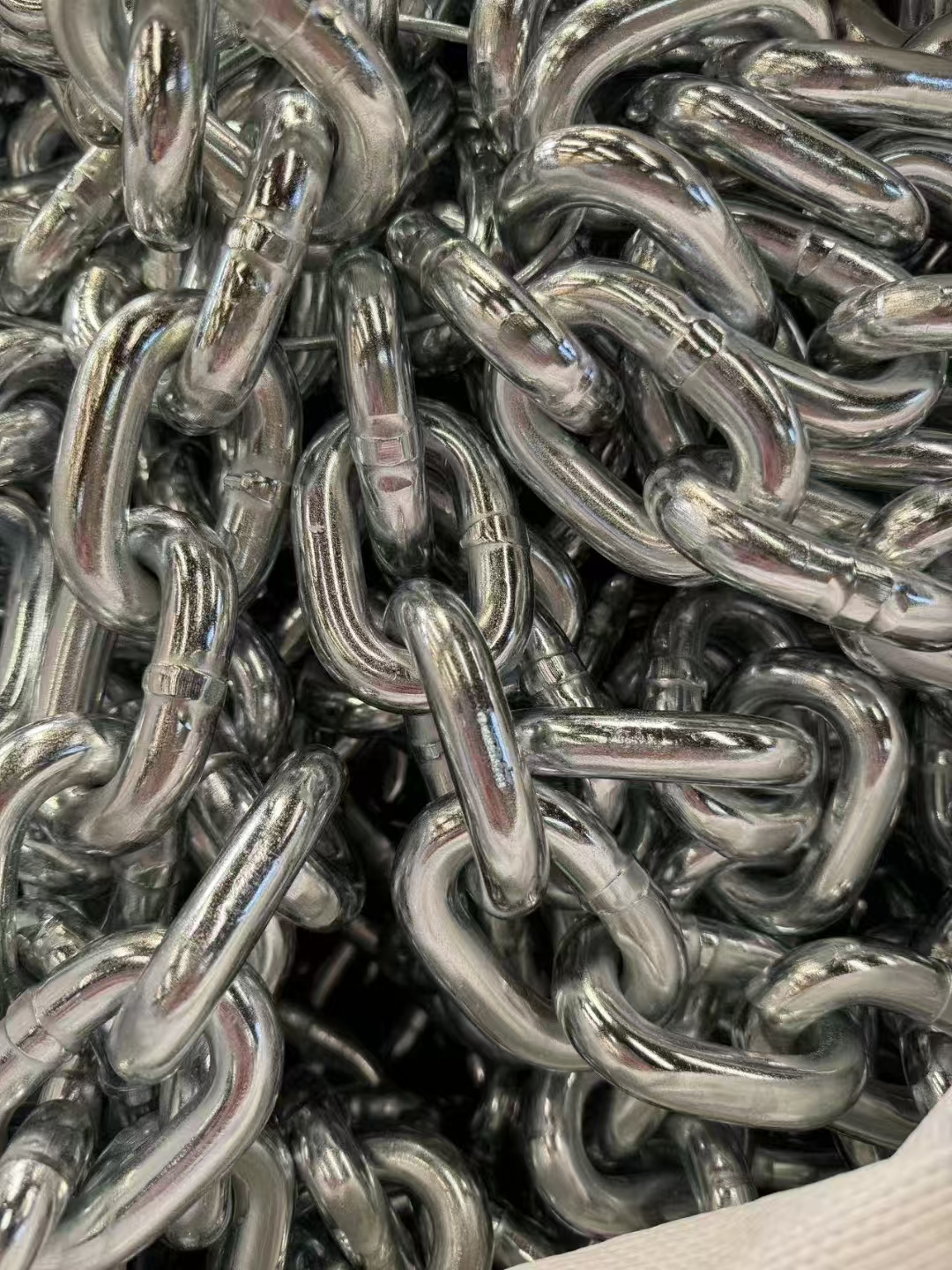

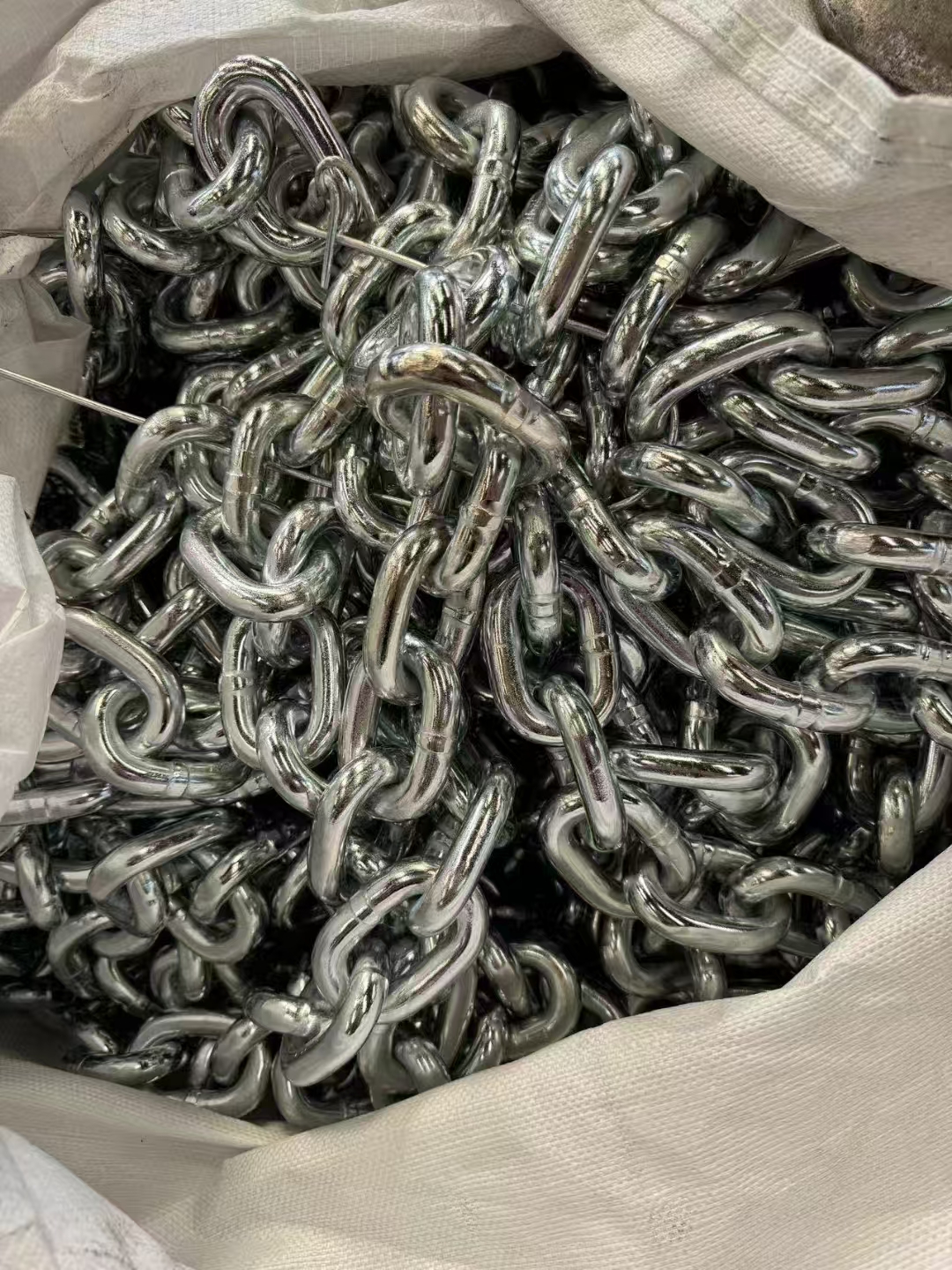

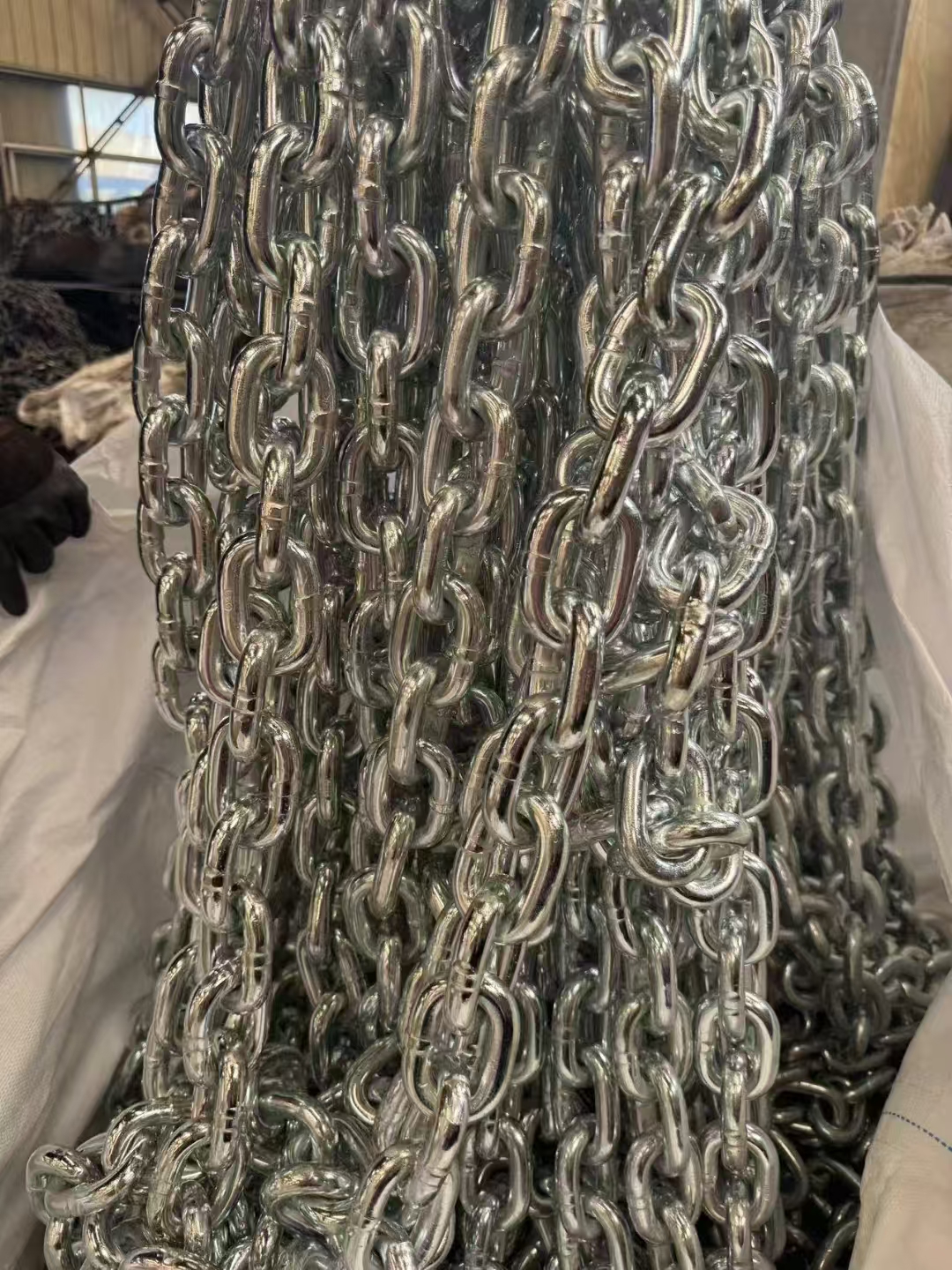

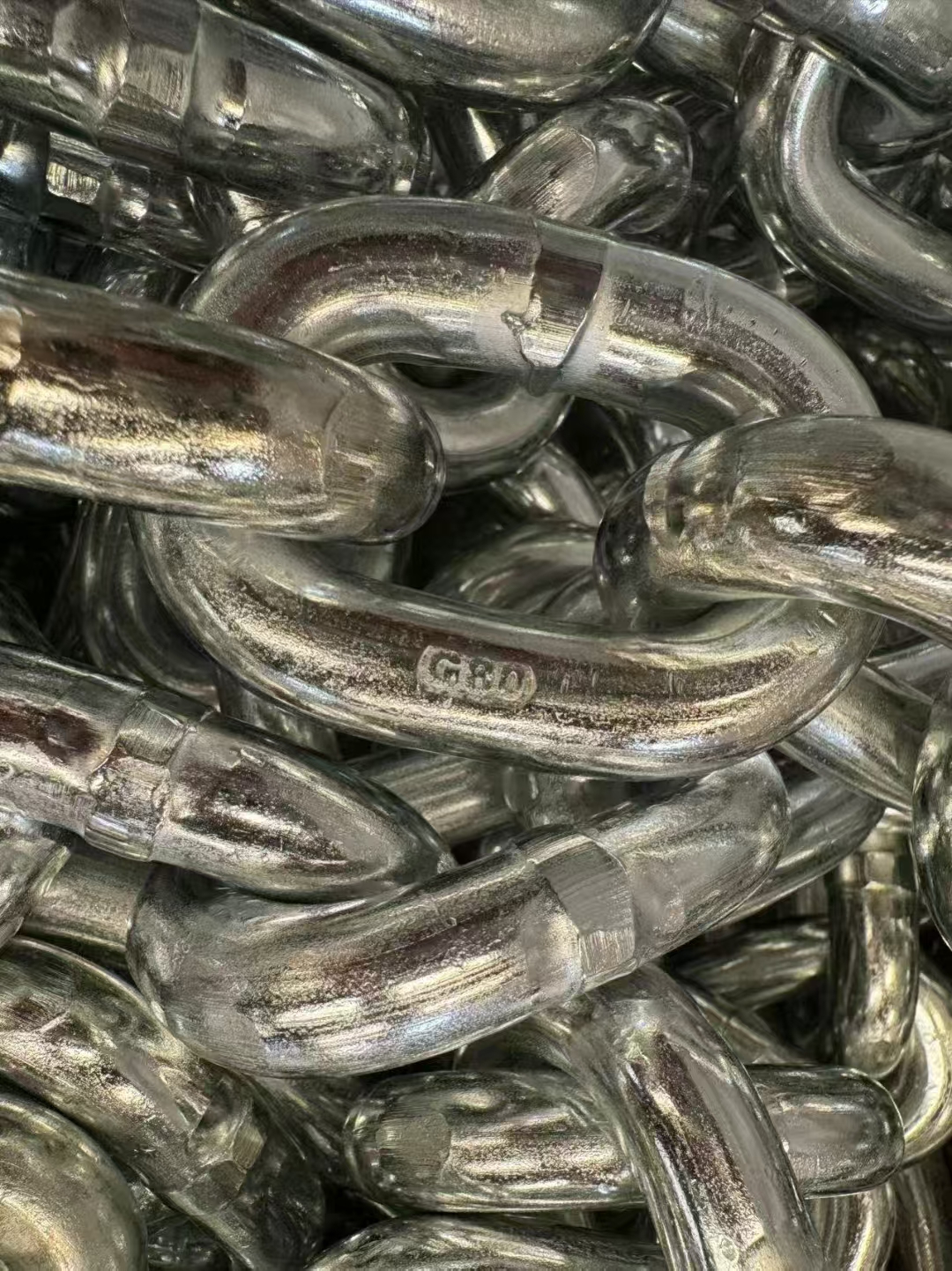

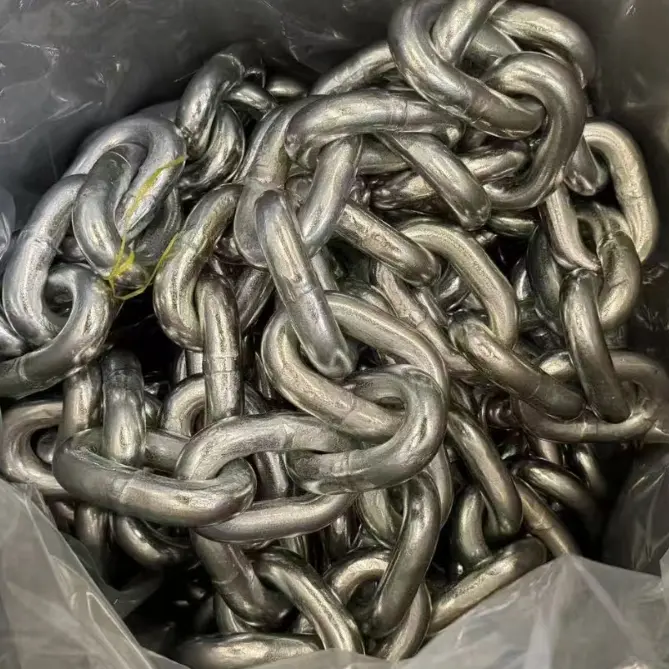

The Australia Standard welded link chain is a sort of mild steel welded link chain manufactured to meet Australian Standard.
There are three types of the chain: short link, medium link and long link. The short link chains are suitable used for overhead lifting.
The Australia standard link chain is suitable for all general purposes, such as engineering, industrial, agricultural and marine applications.
The chain is in a variety of protective finishes and packages.
Besides, we provide a wide range of material diameter, from 5mm to 24mm.
The chain material can be carbon steel or stainless steel AISI 304/316.
| Chain Size mm |
Working Load ton |
Link Dimension | Link Per M pc |
Length Per 100kg | |||
| Dia mm |
Inside Length mm |
Outside Width mm |
B.F M |
H.D.G M |
|||
| 5 | 0.24 | 5.0 | 14.6 | 17.2 | 68.3 | 174.0 | 167.0 |
| 6 | 0.32 | 6.3 | 18.9 | 21.5 | 52.9 | 114.0 | 108.0 |
| 8 | 0.53 | 8.0 | 24.0 | 27.5 | 41.7 | 70.5 | 67.0 |
| 10 | 0.83 | 10.0 | 29.5 | 33.5 | 33.9 | 45.2 | 42.9 |
| 12 | 1.50 | 12.5 | 37.5 | 40.6 | 26.7 | 29.5 | 28.0 |
| 13 | 1.60 | 13.0 | 38.8 | 44.6 | 25.8 | 26.9 | 26.3 |
| 16 | 2.31 | 16.0 | 47.0 | 54.0 | 21.3 | 17.6 | 16.7 |
| 20 | 3.45 | 20.0 | 59.2 | 68.5 | 16.9 | 11.3 | 11.1 |
| 22 | 4.55 | 22.0 | 64.9 | 77.0 | 15.4 | 9.5 | 9.2 |
| 24 | 5.43 | 24.0 | 71.0 | 82.2 | 14.1 | 7.8 | 7.6 |
