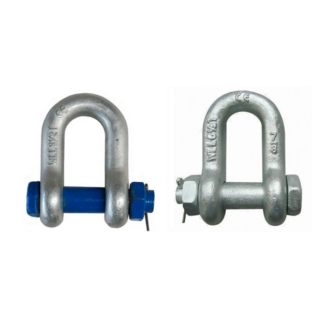

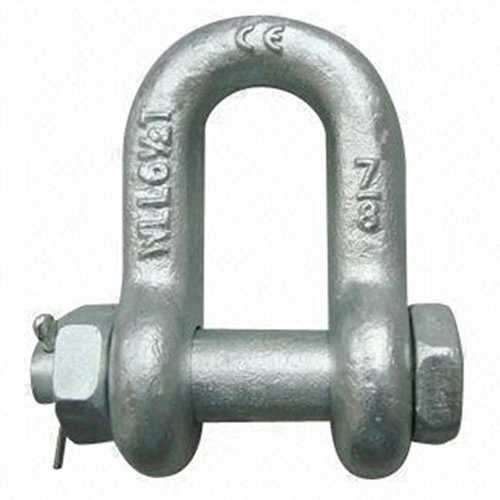

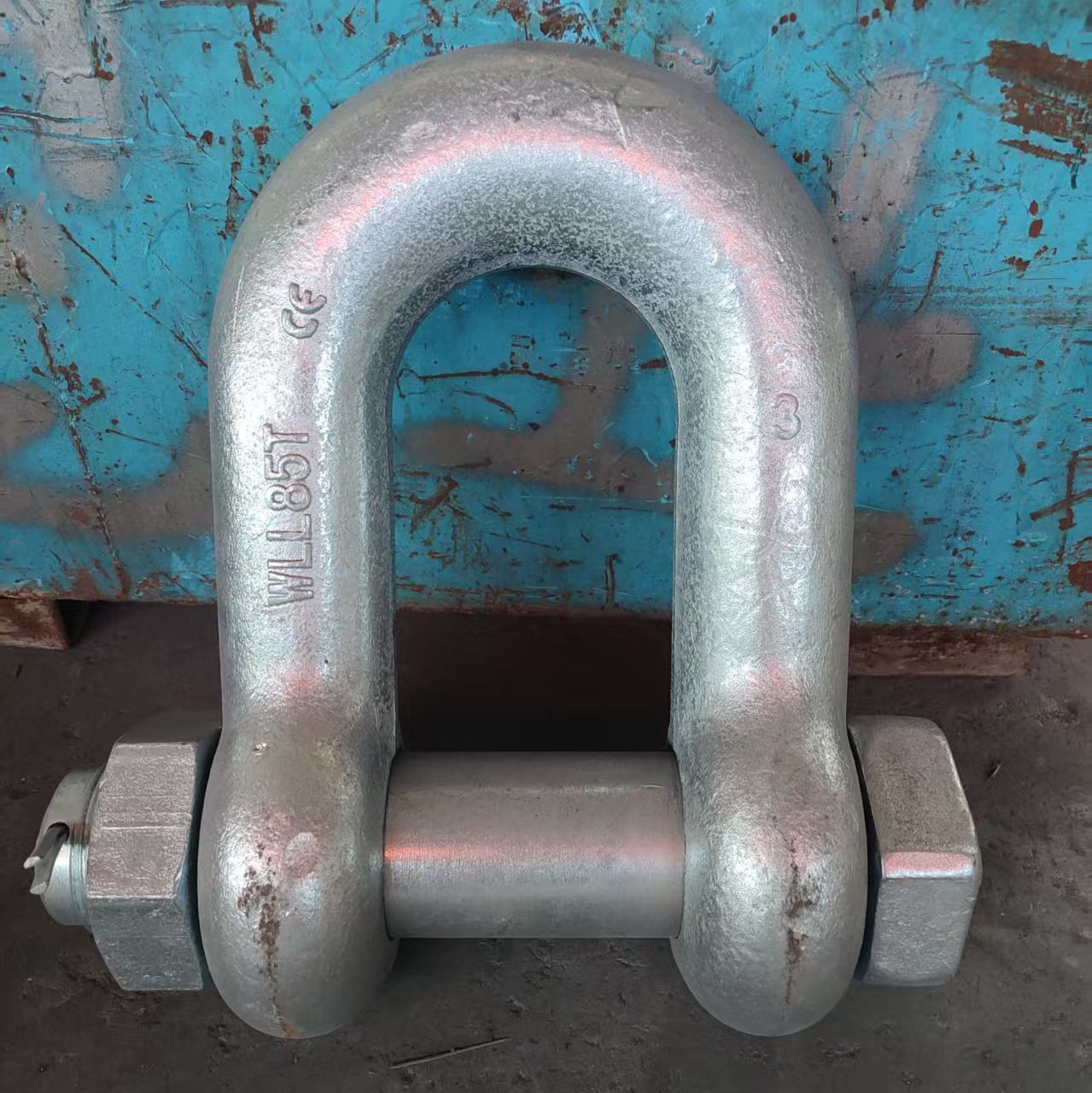

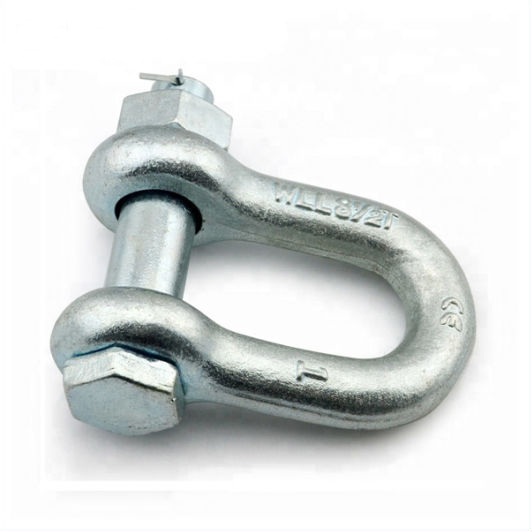

American Standard G2150 Forged D Type Shackle Bolt Type Anchor Shackle, with Safety Pin and Nut.
Anchor Shackle Bolt Type Forged Alloy to US Federal Specification
G2150 Bolt type chain shackles can be used in applications where round pin or screw pin shackles are used.
However, a bolt type shackle is a better choice in permanent or long-term applications, or if there’s a risk of a load sliding on the shackle pin, causing it to rotate.
Forged carbon steel is quenched, tempered, and hot dip galvanized for protection.
Embossed with product identification code and working load limit information.
| Weight | Size | WLL | Dimensions(mm) | |||||||
| (kg) | (in.) | (T) | ||||||||
| G-2150 | A | B | D | F | G | K | M | P | ||
| 0.06 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 15.5 | 19.1 | 40.4 | 24.6 | 39.6 |
| 0.1 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 |
| 0.15 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 23.1 | 31.0 | 58.5 | 35.8 | 55.1 |
| 0.22 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.5 | 41.1 | 63.8 |
| 0.34 | 1/2 | 2 | 20.6 | 16 | 12.7 | 30.2 | 41.0 | 77 | 46 | 71.1 |
| 0.67 | 5/8 | 3-1/4 | 26.9 | 19.1 | 16 | 38.1 | 50.8 | 95.5 | 58.5 | 89.7 |
| 1.14 | 3/4 | 4-3/4 | 31.8 | 22.4 | 19.1 | 46 | 60.5 | 115 | 70 | 103.4 |
| 1.74 | 7/8 | 6-1/2 | 36.6 | 25.4 | 22.4 | 53 | 71.4 | 135 | 81 | 119.6 |
| 2.52 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 60.5 | 81.0 | 151 | 93.5 | 134.9 |
| 3.45 | 1-1/8 | 9-1/2 | 46 | 31.8 | 28.7 | 68.5 | 90.9 | 172 | 103 | 149.9 |
| 4.90 | 1-1/4 | 12 | 51.5 | 35.1 | 31.8 | 76 | 100.1 | 191 | 115 | 165.4 |
| 6.24 | 1-3/8 | 13-1/2 | 57 | 38.1 | 35.1 | 84 | 111.3 | 210 | 127 | 183.1 |
| 8.39 | 1-1/2 | 17 | 60.5 | 41.4 | 38.1 | 92 | 122.2 | 230 | 137 | 196.3 |
| 14.2 | 1-3/4 | 25 | 73 | 51 | 44.5 | 106 | 146.1 | 279 | 162 | 229.9 |
| 21.2 | 2 | 35 | 82.5 | 57 | 51 | 122 | 171.5 | 312 | 184 | 264.4 |
| 38.6 | 2-1/2 | 55 | 105 | 70 | 66.5 | 145 | 203.2 | 377 | 238 | 344.4 |
| 56.0 | 3 | 85 | 127 | 82.5 | 76 | 165 | 215.9 | 429 | 279 | 419.1 |
