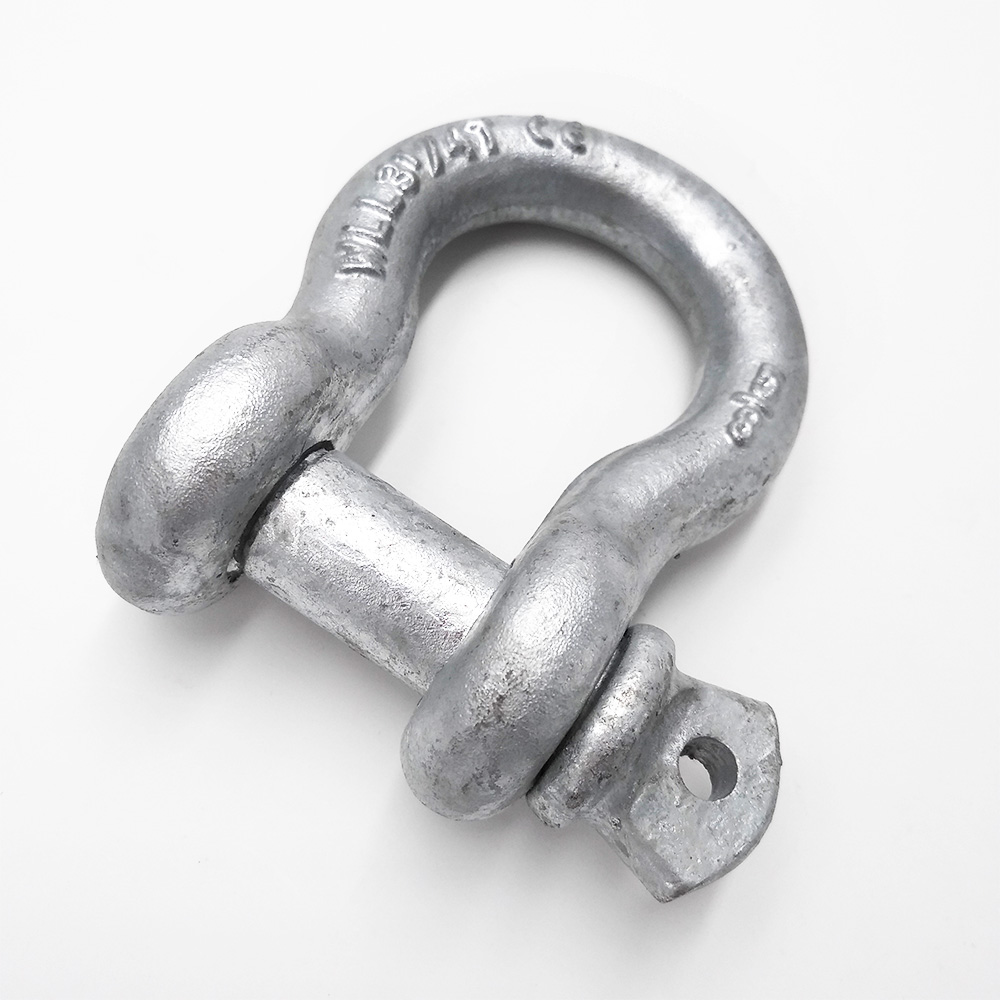

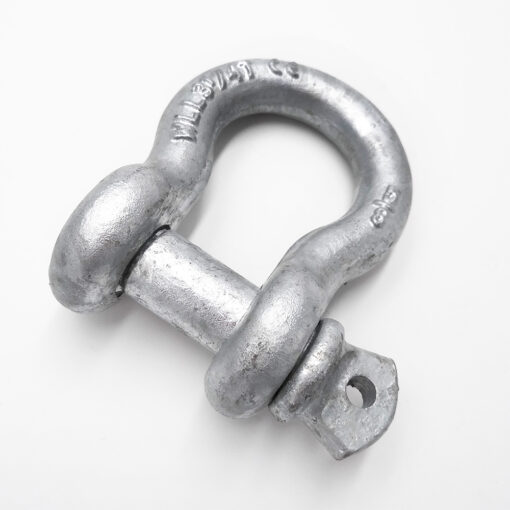

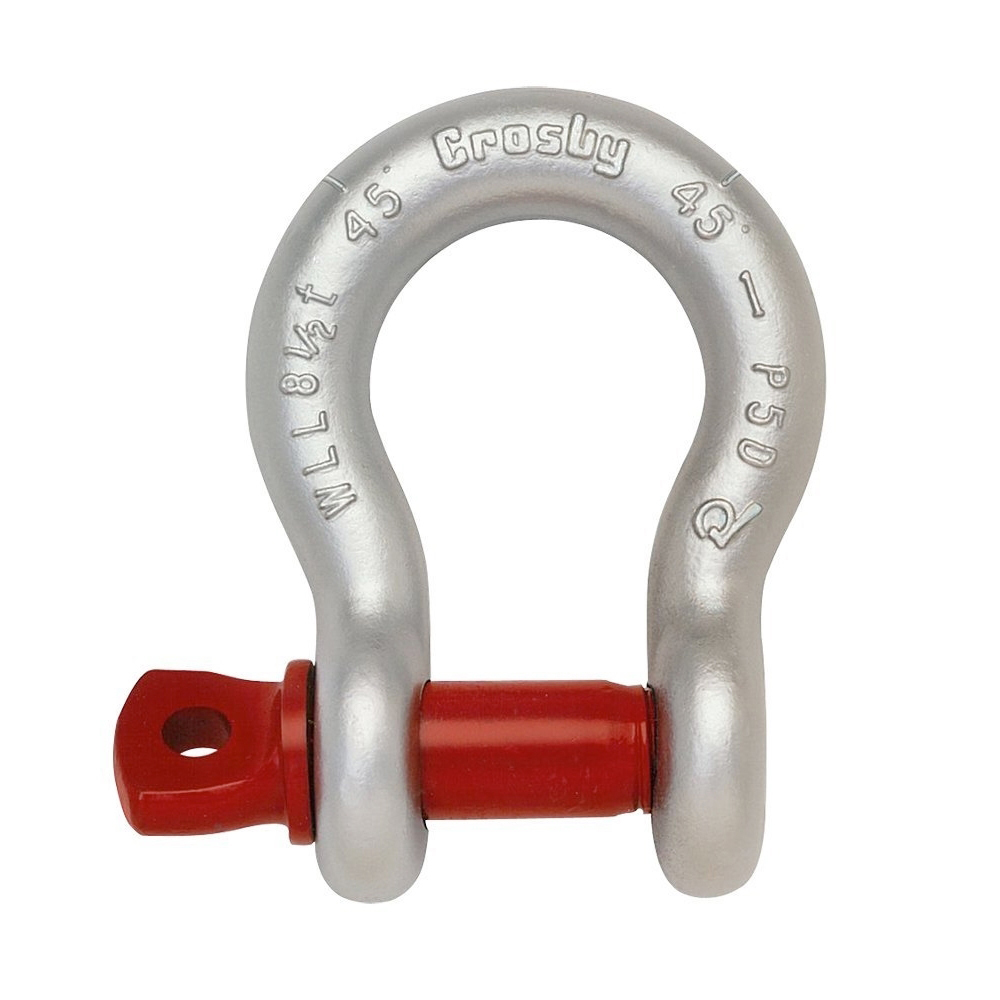

US type G209 screw pin shackle
US type G209 screw pin shackle is a type of shackle with screw pin, is a durable and reliable rigging tool.It is built to meet ASTM A153 and Federal Specification RR-C-271F Type IVA standards.The galvanized finish ensures long-lasting protection against corrosion, making the G210 shackle a trusted choice for both industrial and marine use.
Product Description
G209 Shackle is made from high tensile carbon steel 45, features its bow shackle, which makes it easily attached to chains ,slings and ropes.
Screw pin anchor shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load.
The minimum breaking strength(M.B.S) at 4-6 times, shackle after drop forged and heat treatment is 6 times, drop forged but no heat treatment is 4 times.
That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap.
The screw pin configuration is best for use in applications that are temporary, or require repeated and/or quick connections and disconnections.
| Weight | Size | WLL | Dimensions(mm) | ||||||||||
| (kg) | (in.) | (T) | |||||||||||
| G209 | A | B | C | D | E | F | G | H | L | M | P | ||
| 0.03 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 |
| 0.05 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 |
| 0.09 | 5/16 | 3/4 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 37.3 | 53 | 5.6 | 42.2 | 7.85 |
| 0.14 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63 | 6.35 | 51.5 | 9.65 |
| 0.17 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74 | 7.85 | 60.5 | 11.2 |
| 0.33 | 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 |
| 0.62 | 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85 | 17.5 |
| 1.07 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 89 | 126 | 12.7 | 101 | 20.6 |
| 1.64 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 102 | 148 | 12.7 | 114 | 24.6 |
| 2.28 | 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 |
| 3.36 | 1-1/8 | 9-1/2 | 46 | 31.8 | 108 | 29.5 | 74 | 68.5 | 131 | 190 | 16 | 142 | 31.8 |
| 4.31 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 32.8 | 82.5 | 76 | 146 | 210 | 17.5 | 156 | 35.1 |
| 6.14 | 1-3/8 | 13-1/2 | 57.O0 | 38.1 | 133 | 36.1 | 92 | 84.00 | 162 | 233 | 19.1 | 174 | 38.1 |
| 7.8 | 1-1/2 | 17 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92 | 175 | 254 | 20.6 | 187 | 41.1 |
| 12.6 | 1-3/4 | 25 | 73 | 51 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25 40 | 231 | 57 |
| 20.4 | 2 | 35 | 82.5 | 57 | 197 | 53.00 | 146 | 122 | 253 | 348 | 31 | 263 | 61 |
| 38.9 | 2-1/2 | 55 | 105 | 70 | 267 | 69 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 |
