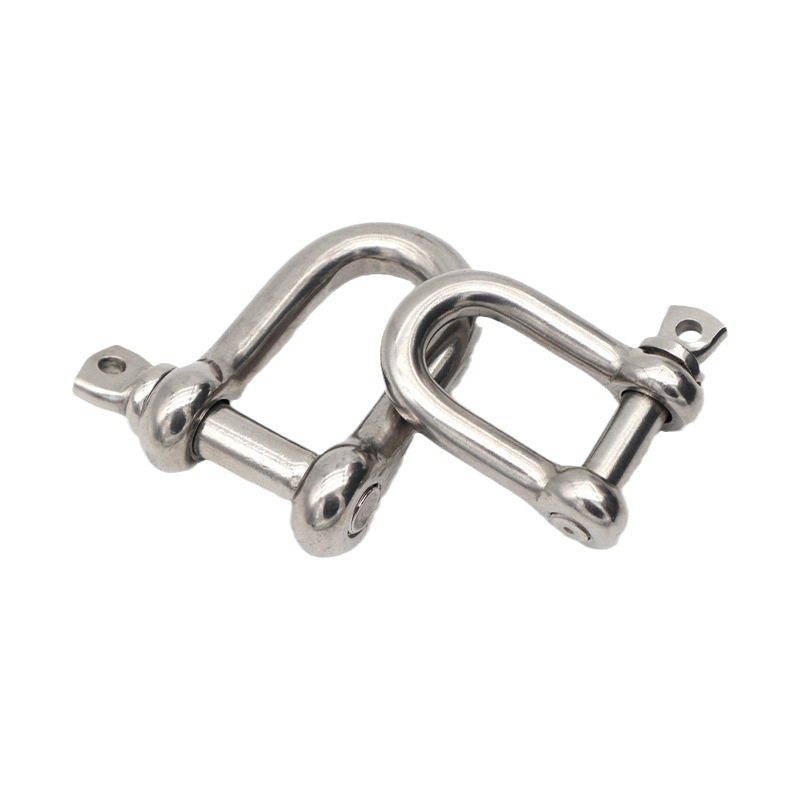

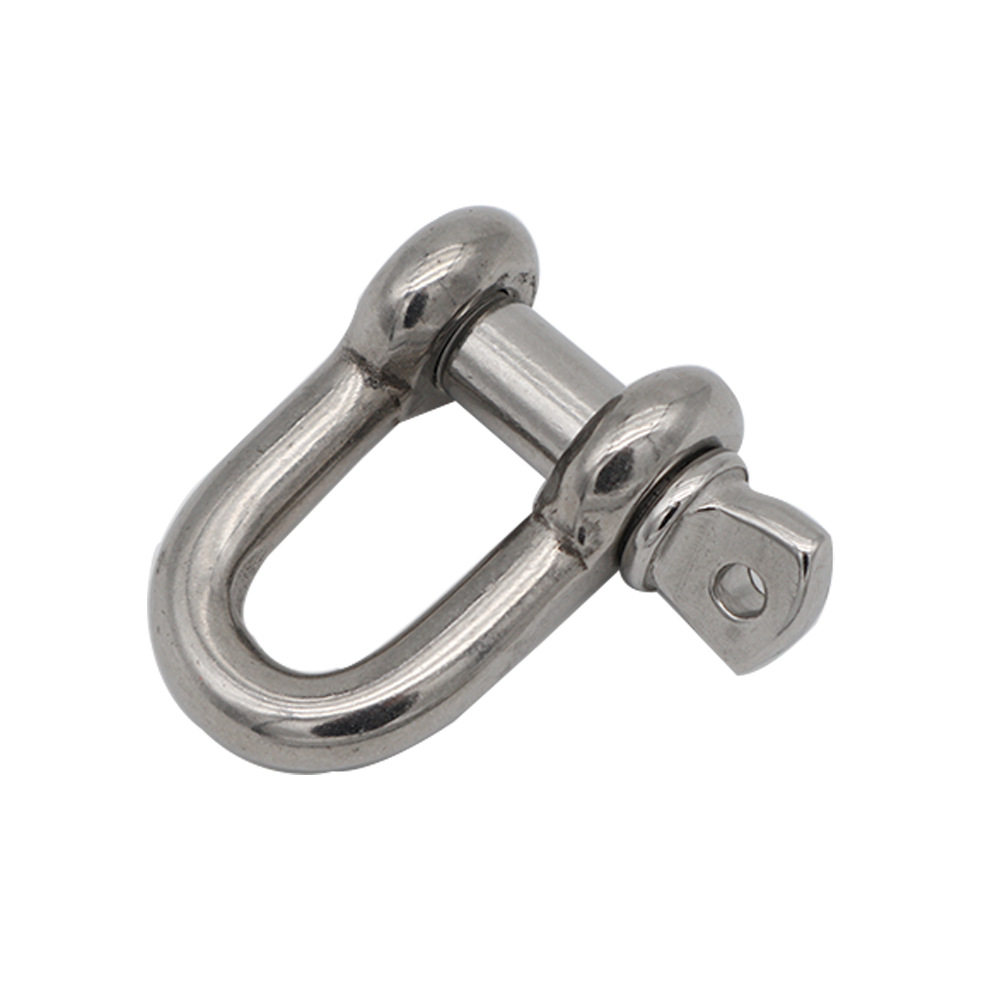

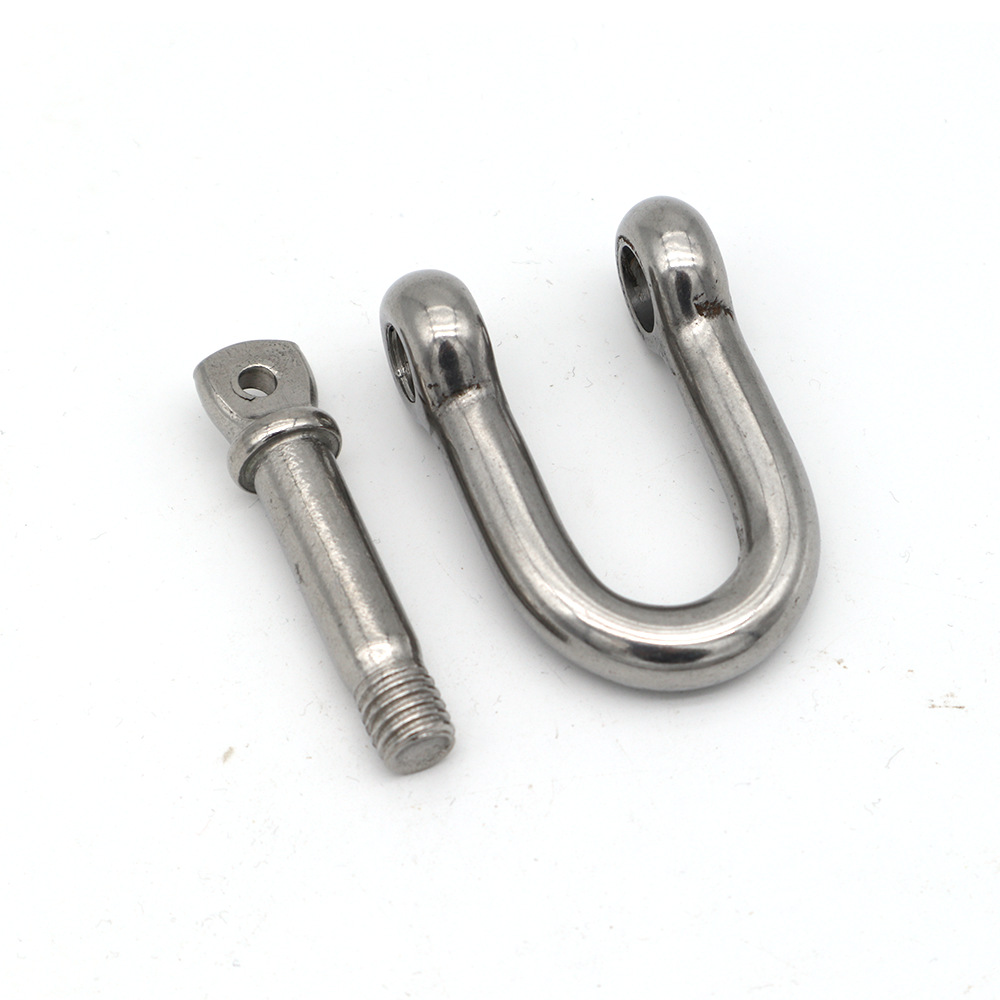

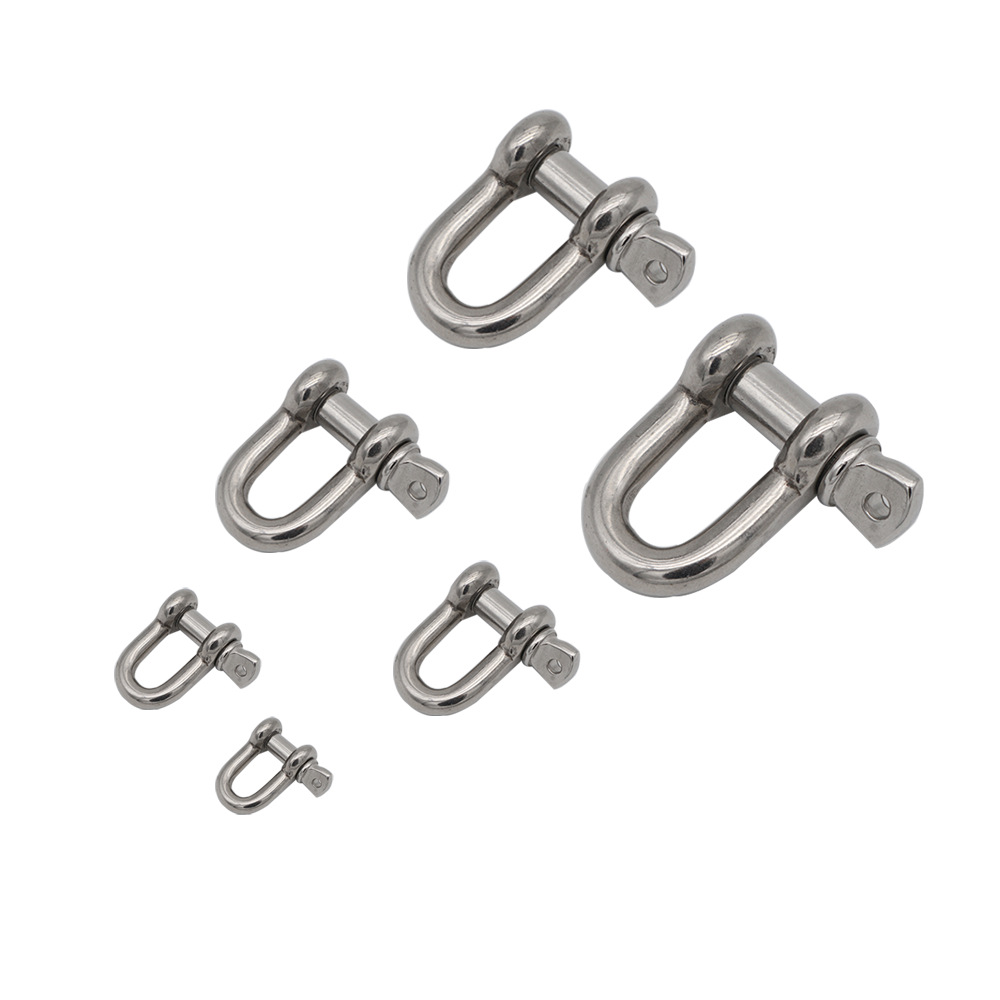

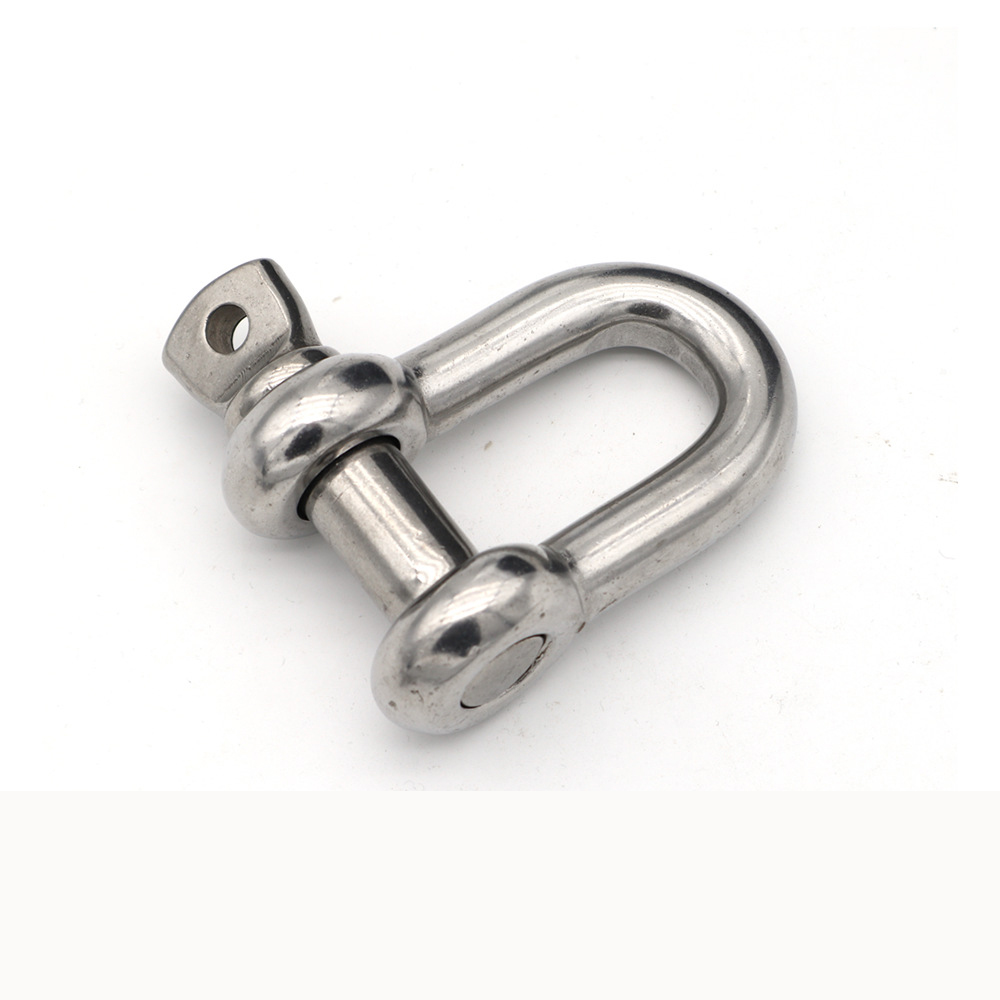

European D Type Shackle Stainless Steel meets strict EN 13889 standards. Crafted from premium 304/316 stainless steel, this European D Type Shackle offers exceptional corrosion resistance, ideal for marine, offshore and industrial use. Forged in one piece, the stainless steel Dee shackle boasts strong load-bearing capacity, resisting bending and deformation. Available in large sizes with screw pin or bolt pin closure, it is versatile for lifting, lashing and rigging—low-maintenance, long-lasting, customizable, and a reliable choice for safety-focused professionals.
Material :Stainless steel AISI316 & AISI304
Packing :In gunny bags or in cartons .
Finish :Polished
Pin Type:Screw pin
Application can be used for Marine, Sailboat Rigging ,the shackle is stainless shackle.
- OEM Manufacturing and Export Supply CapabilityWe offer OEM and wholesale supply of stainless steel European type dee shackles with stable quality control and export-ready packaging.MOQ, custom marking, and packaging methods.Send your inquiry to receive OEM pricing and delivery schedules.
Specification
European Type Dee Shackle, Stainless Steel AISI 304 or AISI 316
| Size | Dimension(mm) | Working Load Limit | N.W. | ||||
| (mm) | H | A | B | D | D1 | (kg) | (g/pc) |
| 5 | 20 | 10 | 11 | 5 | 5 | 80 | 18 |
| 6 | 25 | 13 | 14 | 6 | 6 | 100 | 32 |
| 8 | 32 | 16 | 18 | 8 | 8 | 200 | 67 |
| 10 | 38 | 19 | 20 | 10 | 10 | 320 | 126 |
| 12 | 51 | 25 | 26 | 12 | 12 | 520 | 235 |
| 16 | 64 | 32 | 33 | 16 | 16 | 800 | 495 |
| 20 | 76 | 38 | 40 | 20 | 20 | 1100 | 790 |
| 22 | 89 | 44 | 50 | 22 | 22 | 1500 | 1280 |
| 25 | 100 | 51 | 57 | 25 | 25 | 2100 | 1980 |
| 28 | 115 | 57 | 73 | 28 | 28 | 3000 | 2970 |
