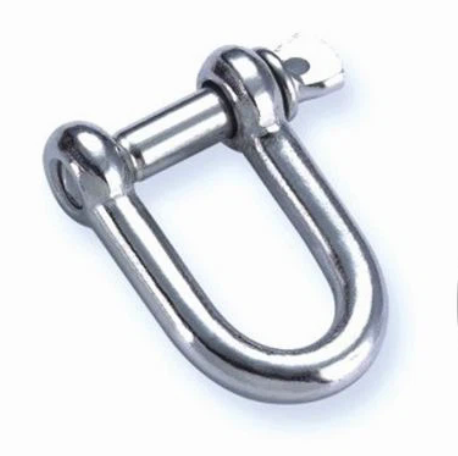

U.S D Type Shackle Stainless Steel
Ideal for U.S. rigging, marine and industrial scenarios, this high-quality stainless steel hardware undergoes 100% quality inspection before delivery. U.S D-type shackle stainless steel meets strict U.S. Crosby 210/2150 standards and ASTM material standards, crafted from premium 304/316 stainless steel (compliant with ASTM). Delivering excellent corrosion resistance—zero rust, low maintenance—it is forged in one piece with strong load-bearing capacity, your cost-effective, reliable choice for U.S. standard rigging.
Material :Stainless steel AISI316 & AISI304
Packing :In gunny bags or in cartons .
Finish :Polished
Pin Type:Screw pin
Application can be used for Marine, Sailboat Rigging ,the shackle is stainless shackle.
- OEM Manufacturing and Export Supply CapabilityWe offer OEM and wholesale supply of stainless steel European type dee shackles with stable quality control and export-ready packaging.MOQ, custom marking, and packaging methods.Send your inquiry to receive OEM pricing and delivery schedules.
Specification
U.S Type Dee Shackle, Stainless Steel, AISI 304 or AISI 316
| Size | Dimension(mm) | D1 | Working Load Limit | N.W. | |||
| (in) | H | A | B | D | (in) | (lbs) | (g/pc) |
| 3/16 | 22 | 9 | 14 | 5 | 1/4 | 250 | 21 |
| 1/4 | 28 | 12 | 15 | 6 | 5/16 | 330 | 50 |
| 5/16 | 31 | 13 | 19 | 8 | 3/8 | 500 | 77 |
| 3/8 | 36 | 16 | 23 | 10 | 7/16 | 750 | 109 |
| 7/16 | 42 | 18 | 27 | 11 | 1/2 | 1000 | 182 |
| 1/2 | 48 | 21 | 30 | 12 | 5/8 | 1500 | 268 |
| 5/8 | 60 | 27 | 38 | 16 | 3/4 | 2250 | 550 |
| 3/4 | 71 | 32 | 46 | 20 | 7/8 | 3250 | 1020 |
| 7/8 | 84 | 36 | 53 | 22 | 1 | 4250 | 1440 |
| 1 | 95 | 43 | 60 | 25 | 1-1/8 | 5500 | 2150 |
