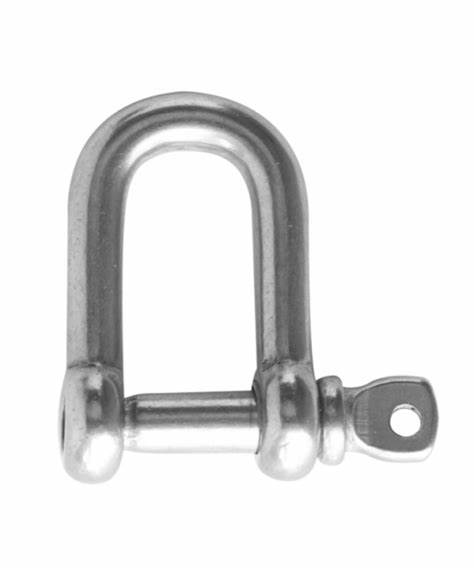

Large Dee Shackle AISI316&AISI 304 Stainless Steel Screw Pin European type
Stainless steel shackle, Yatch shackle, Dee shackle, Square head pin shackle.
Material :Stainless steel AISI316 & AISI304
Packing :In gunny bags or in cartons .
Finish :Polished
Pin Type:Screw pin
Application can be used for Marine, Sailboat Rigging ,the shackle is stainless shackle.
|
Item No.
|
A(mm)
|
B(mm)
|
C(mm)
|
D(mm)
|
WT(Kgs)
|
|
SSS08
|
8
|
8
|
16
|
32
|
0.07
|
|
SSS10
|
10
|
10
|
20
|
30
|
0.14
|
|
SSS12
|
12
|
12
|
25
|
51
|
0.25
|
|
SSS16
|
16
|
16
|
32
|
63
|
0.53
|
|
SSS20
|
20
|
20
|
38
|
76
|
0.92
|
|
SSS22
|
22
|
22
|
45
|
89
|
1.40
|
|
SSS25
|
25
|
25
|
51
|
102
|
2.15
|
|
SSS28
|
28
|
28
|
57
|
114
|
3.00
|
